Description
Overview

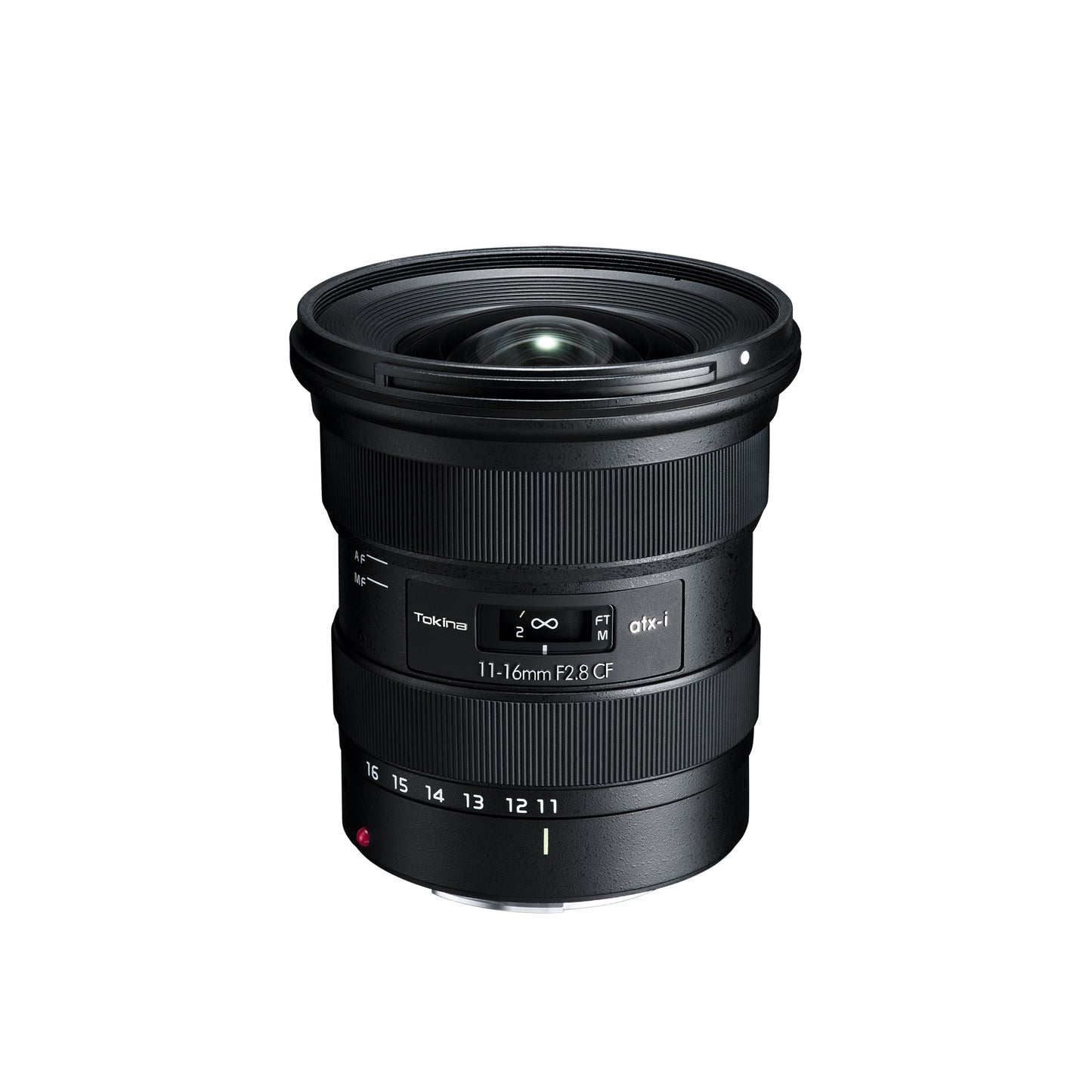

The Tokina atx-i 11-16mm f/2.8 cropped frame (CF) is an ultra wide angle zoom lens for APS-C sensor DLSR cameras.
A constant maximum aperture of f/2.8 throughout the entire zoom range helps achieve:
- great results in low light environments
- depth of field control
- easy manual shooting
For exceptional optical performance in still and video shooting scenarios, two aspherical glass elements and two Super-Low Dispersion (SLD) glass elements were used in order to minimize distortion, manage spherical aberration and astigmatism while achieving excellent edge-to-edge resolution and contrast throughout the entire image. Virtually no light fall off occurs at the edges at all focal lengths.
Coatings
Anti-reflective multi-layer coating improves light transmission and minimizes reflections while water-repellent coating makes wiping and cleaning the surface of the front glass element easier.
Construction
Tokina incorporated several metal parts inside the lens for a reassuring build quality and long time utilization in a variety of shooting conditions. The sophisticated exterior design is specifically developed to match the design of contemporary DSLR cameras.
Precise attention was also given to zoom and focus ring rotation which has ample room with no extra wiggle. The coveted one-touch focus clutch mechanism allows switching between autofocus and manual focus efficiently. The overall length of the Tokina atx-i 11-16mm f/2.8 CF does not change when focusing and zooming thanks to the internal construction of the lens.
Specifications
Lens Construction:
Series | atx-i |
Sensor Type | APS-C |
Mount | Canon EF |
Country of Origin | Japan |
Focal Length | 11-16mm |
Maximum Aperture | f/2.8 |
Minimum Aperture | f/22 |
Automatic Aperture | Yes |
Angle of View | 104°-82° |
Minimum Focus Distance | .3m |
Macro Ratio | 1 : 11.6 |
Focusing Mode | Automatic |
Manual Focus Ring | Yes |
Focusing Type | Internal Focus |
Filter Size | 77mm |
Coating | Multi-Coating |
Construction (E/G) | 13 Elements in 11 Groups |
Aperture Blades | 9 |
Lens Hood | BH-77B |
Electrical Contacts | Yes |
Dimensions | 84mm x 92mm |
Weight | 555g / 1.2lbs |
Warranty | 3 years exclusive USA |
Support
WARRANTY REPAIRS
For warranty repairs, please send the lens to the following address:
Kenko Tokina USA
7642 Woodwind Drive
Huntington Beach, CA 92647
ATTN: Repair Dept.
Please include any and all contact information (how to get in touch with you – phone number, email address, return shipping address), a note explaining the problem, along with any and all warranty information (warranty card and receipt from an authorized US Tokina dealer).
NON-WARRANTY REPAIRS
Please send your lens to the following address:
Kenko Tokina USA
7642 Woodwind Drive
Huntington Beach, CA 92647
ATTN: Repair Dept.
Include a note explaining the problem, along with any and all contact information (how to get in touch with you – phone number, email address, return shipping address).
We will contact you with a repair estimate before any work has begun. If the estimate is more money than you are willing to spend, simply refuse the estimate, and we will return your lens to you at no additional cost.
If your lens is 10 years or older, please contact us to determine whether there are still parts and service available for your lens.
