Description
Overview
Optical Performance

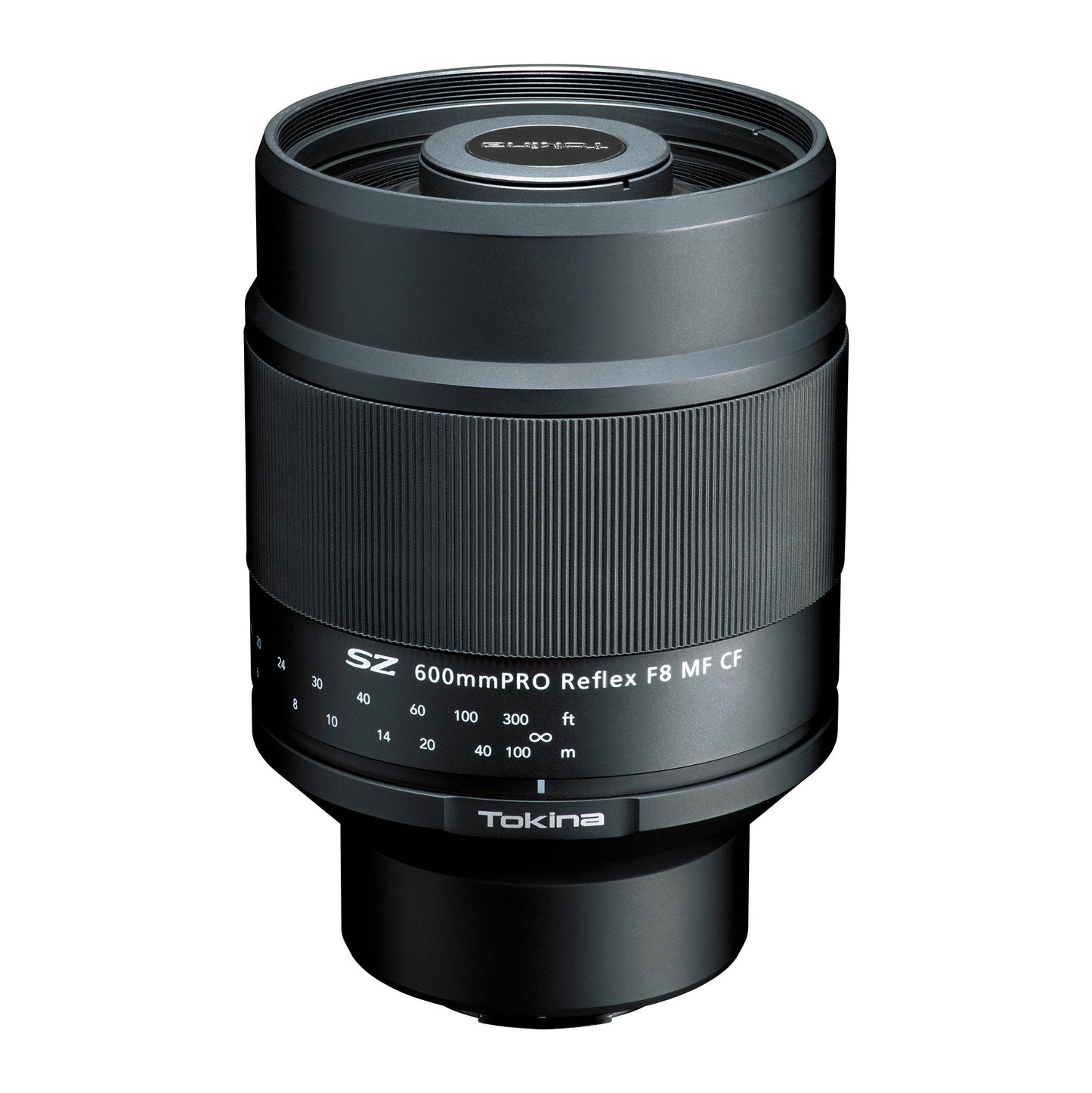

Mirror lenses are tele photo lenses that incorporate a combination of 3 lenses silvered on the outside of the glass to reflect light back and forth between the ends of the lens. This structure folds the light cutting the tube length in half. In this way the construction makes the physical size of the lens around a third of the size of a conventional lens and allows a lightweight body, because the mirrors are much lighter than the optical glass.
Lens elements inside the lens are coated with multi-layer anti-reflection coating for effective light intake and as a result, for increasing shutter speed in low light conditions.Mirrored surfaces of the lens elements incorporate high-reflectivity silvered coating and a protective antioxidant layer on the back side for a longer product lifetime.
Compact and Lightweight
Compared to other telephoto lenses the 600mm weighs in at 545g. With the lightweight and affordable price it's the perfect lens for the creative on the go looking to add a telephoto to their kit.
Macro Option
The field of view is 2.7° and the minimum focusing distance is 1.77 meters. These properties help the photographer avoid shadows while shooting close up images, and open up creative macro possibilities.
Specific Bokeh
Optical construction of the lens creates a donut shaped bokeh for a one of a kind look.
Focus
Precise focusing could not be easier. The Tokina SZ 600mmPRO Reflex F8 MF CF X is equipped with a wide and excellent grip focus ring that provides smooth rotation range 270°.
INSERT SHARP IMAGE or TURNING GIF
Super Compression
Thanks to its long focal length Tokina SZ 600mmPRO Reflex f/8 can create images with a super compression effect, when the background looks close and enlarged compared to the main object. This effect adds to the image enchanting atmosphere.
INSERT PHOTO OF GOOD COMPRESSION
Specifications
Lens Construction
Series | SZ |
Mount | Fuji X (APS-C) |
Country of Origin | Japan |
Focal Length | 600mm |
Maximum Aperture | f/8 |
Minimum Aperture | f/8 |
Automatic Aperture | Yes |
Angle of View | 2.7° |
Minimum Focus Distance | 1.77m / 5.8ft |
Macro Ratio | 1 : 2.5 |
Focusing Mode | Manual |
Coating | Multi-Coating |
Construction (E/G) | catadioptric (8 elements, 8 groups) |

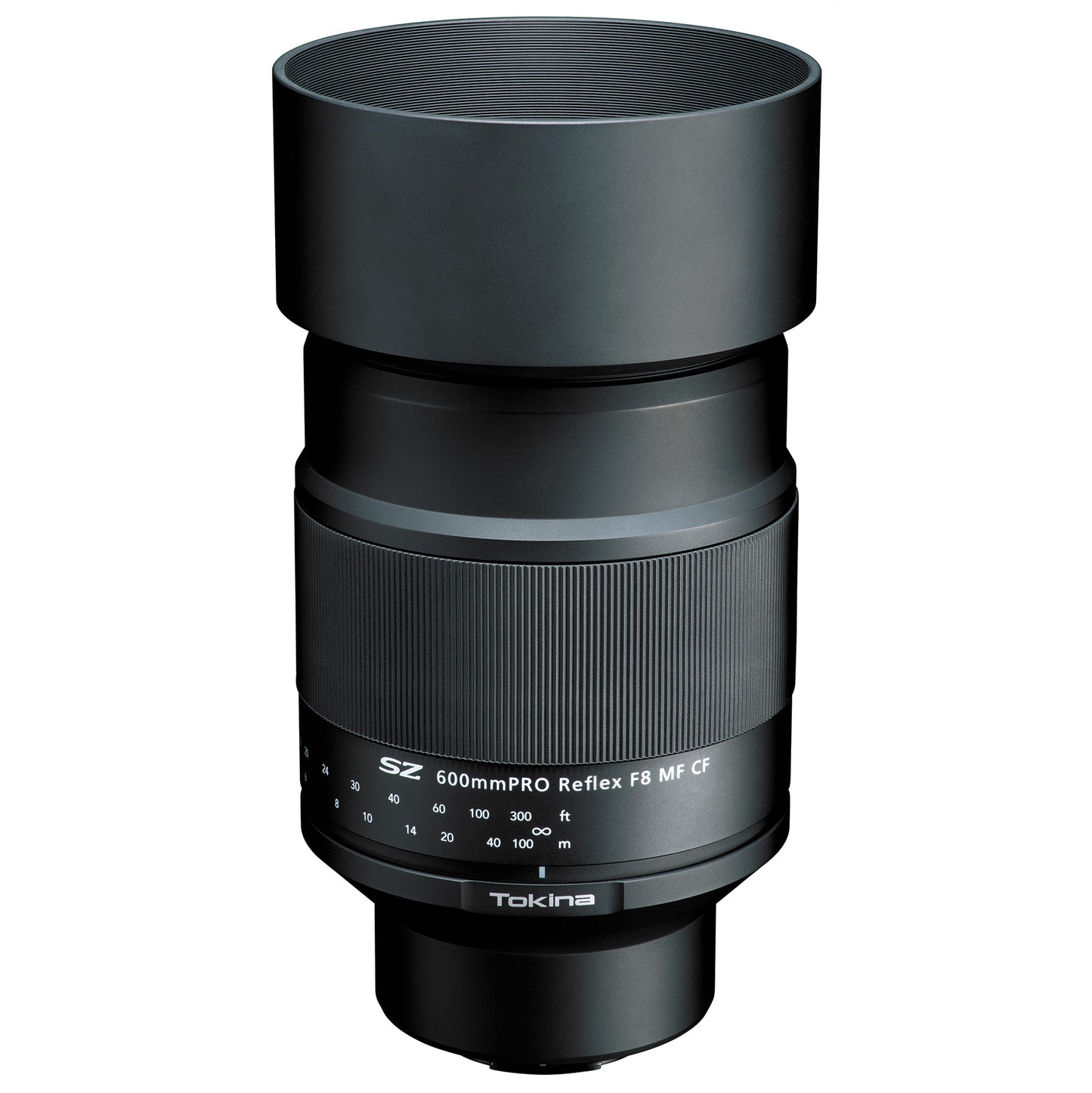

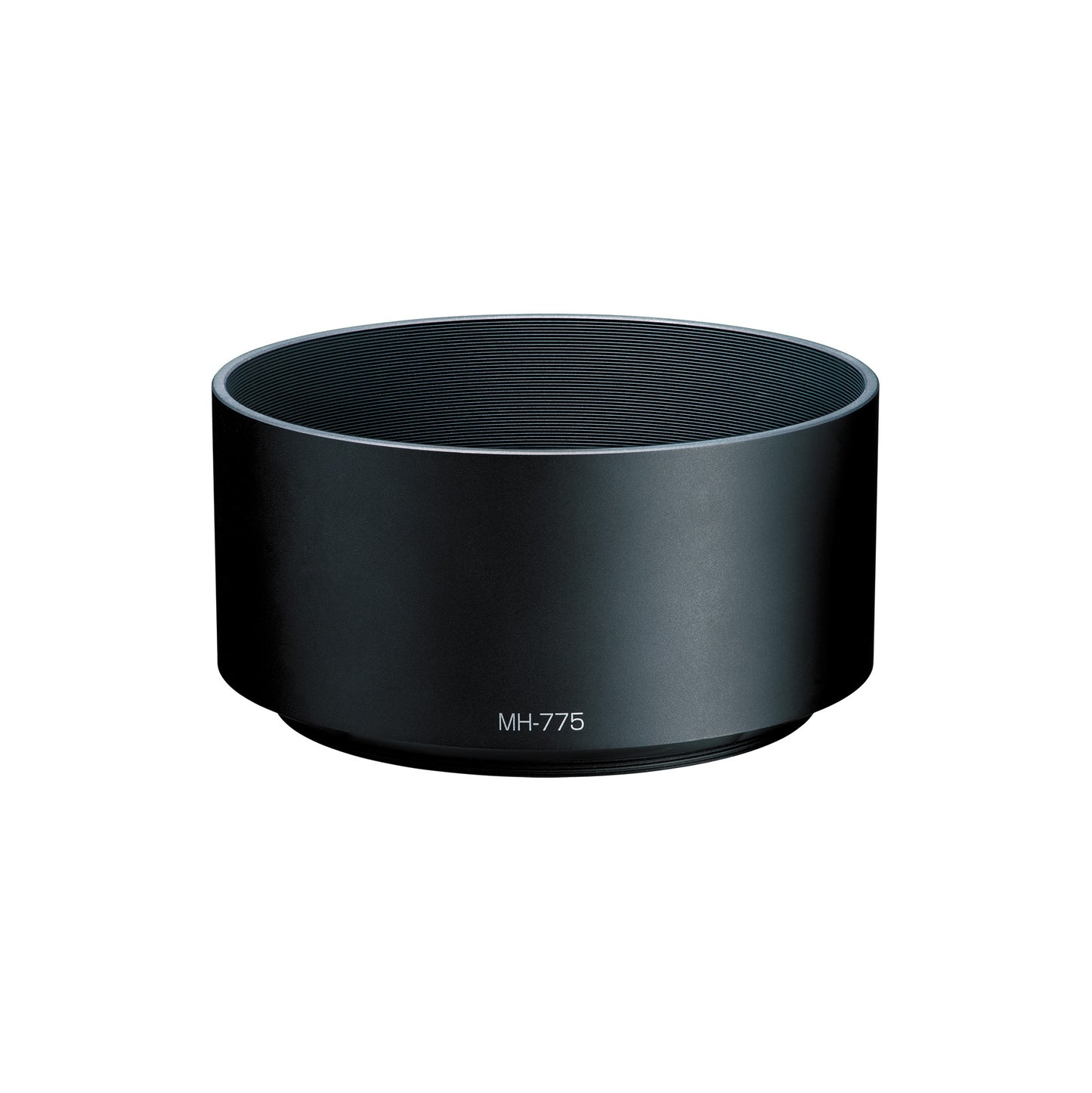

Lens Hood | MH 775 |
Dimensions (L x D) | 125mm x 88.6mm |
Weight | 545g / 1.2 lbs |
Warranty | 3 year exclusive USA |
UPC | 4961607641378 |
Support
WARRANTY REPAIRS
For warranty repairs, please send the lens to the following address:
Kenko Tokina USA
7642 Woodwind Drive
Huntington Beach, CA 92647
ATTN: Repair Dept.
Please include any and all contact information (how to get in touch with you – phone number, email address, return shipping address), a note explaining the problem, along with any and all warranty information (warranty card and receipt from an authorized US Tokina dealer).
NON-WARRANTY REPAIRS
Please send your lens to the following address:
Kenko Tokina USA
7642 Woodwind Drive
Huntington Beach, CA 92647
ATTN: Repair Dept.
Include a note explaining the problem, along with any and all contact information (how to get in touch with you – phone number, email address, return shipping address).
We will contact you with a repair estimate before any work has begun. If the estimate is more money than you are willing to spend, simply refuse the estimate, and we will return your lens to you at no additional cost.
If your lens is 10 years or older, please contact us to determine whether there are still parts and service available for your lens.
